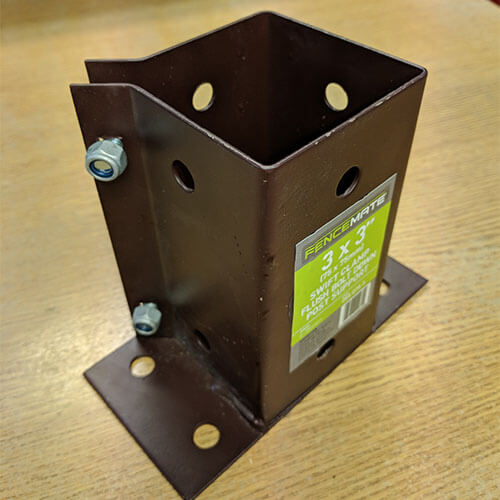

Flush Bolt-Down Post Anchor

Flush Bolt-Down Post Anchors have narrow fixing plates and are designed to support posts on fence lines that run along the top of or against the side of walls.

• Bolt down with 2 sides of the baseplate cut away. It is for use on top or up against the side of walls.
• Zinc plated for corrosion resistance & brown coated.
• Attached using 4 x coach screws & plugs or Thunderbolts.

They are typically bolted to the top or against the side of concrete or brick walls using coach screws and plugs.
Flush Bolt-down post anchors also allow posts to be mounted on flat concrete areas, although standard bolt-down post anchors, with wider fixing plates, are generally better for this function.

If you are mounting a flush bolt down on top of a wall, position it in the centre of the wall. Keep the fixings as far away from the wall edge as possible.

Mounting fencing on top of a wall without regular supporting piers is generally not a good idea. Keep the fencing as low as possible to reduce the strain on the wall's top.

It is a good idea to regularly check Flush Bolt-Downs fixings and the surrounding concrete or brickwork for signs of the bolt-down becoming loose.
